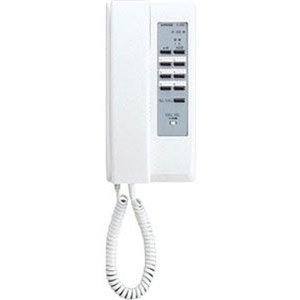

Selective Call Main Handset for 2 Doors, Up To 6 Rooms

• Communication : Handset (full-duplex)
• Door Release : N/O dry contact, 24V AC/ DC, 350mA
• Wire Type :
  • Door Station to Master Station: 2-cond., overall shield
  • Master Station to Sub Stations: 4-cond., overall shield
• Distance :
  • Door Station to Master Station: 500'(22AWG) 1,180'(18AWG)
  • Master Station to farthest Sub Master Station: 245'(22AWG) 580'(18AWG)

SELECTIVE CALL MAIN HANDSET, 2 DOORS, UP TO 6 ROOM

Part Number : IE-8MD

• Selective Call or All Call between handsets
• Simple 4 conductor wiring between handsets
• Two doors with selective door release
• External doorbell can be added
• AC or DC powered (12~16V AC or 12~18V DC)

Installation Guide

IE-8MD SELECTIVE CHIME-TONE INSTALLATION MANUAL

Catalogue

IE-8MD SELECTIVE CHIME-TONE INTERCOM
