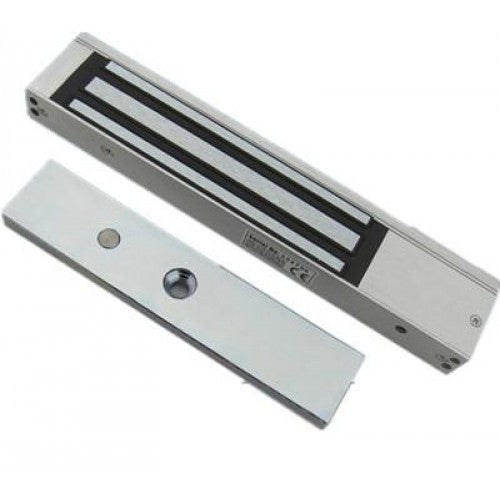

Single Electromagnetic Lock

• Voltage Input : 12 VDC
• Current Draw : 12V / 420mA (±10%)
• Holding Force : Up to 600 lbs (275 kg)
• Anti-Rust Surface Treatment : Nickel Plating (Armature)
• Operating Temperature : -10~55° C ( 14~131° F)
• Operating Humidity : 0~95% ( non condensing)
• Weight : 2.0 kg (±1%)
• Dimensions : Magnet – (H)250x(W)42x(T)26 mm
                             Armature – (H)180x(W)38x(T)11 mm

Part Number : 4-EMLOCK-01 (Factory Code UL275-S)

• 600LBS EM Lock
• 12VDC
• Low Current Consumption
• Electroless Nickel (EN) Plated Armature Plate
• Anodized Aluminium Housing
• Instantaneous Release With In-built Electronic Device
