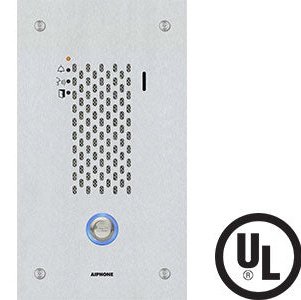

SIP Compatible Flush Mounted IP Door Station

SIP Compatible Flush Mounted IP Door Station
Vandal Resistant Stainless Steel Cover

• Power Source: PoE (IEEE 802.3af class 0)
• Power Draw: 3.36 Watts
• Audio Codec: G.711 (μ-law, A law), G.722
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp: -40° - 140°F (-40° - 60°C)
• Ingress Protection: IP65
• Impact Protection: IK08
• Dimensions: 10-7⁄16" H x 5-⅞" W
• Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box

• SIP 2.0 Compliant
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• Illuminated call button indicator
• Slot for micro SD card (not provided by Aiphone)
• IP65 rated, weather resistant (IP65)
• 2 contact outputs
• 6 trigger inputs
