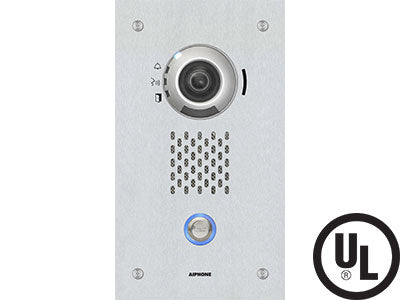

SIP Compatible Flush Mounted IP Video Door Station

SIP Compatible Flush Mounted IP Video Door Station
Vandal Resistant Stainless Steel Faceplate

• Power Source: PoE (IEEE 802.3af class 0)
• Power Draw: 5.28 Watts
• Camera: ⅓" CMOS 1.23 megapixel
• Min. illumination: 5 lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Video Codec: H.264/AVC, motion JPEG
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp: -40° - 140°F (-40° - 60°C)
• Protection Rating: IP65, IK08
• Dimensions: 10-7⁄16" H x 5-⅞" W
• Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVF Stainless Steel surface mount box

• Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
• ONVIF® Profile S Compliant
• 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
• 1.23 megapixel fixed color video camera
• Camera vertical adjustment +15º, 0º, or -8º (manual)
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• IP65 rated, weather resistant
• Stainless steel faceplate
• 2 contact outputs
• 6 trigger inputs
