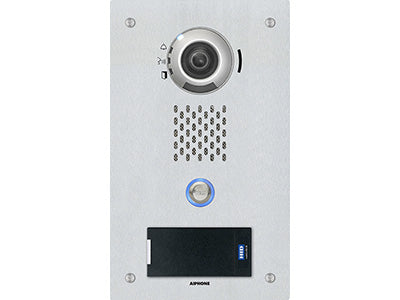

SIP Compatible Flush Mounted IP Video Door Station (Discontinued 12/31/22)
SIP Compatible Flush Mounted IP Video Door Station (Discontinued 12/31/22)
Low stock: 1 left
SIP Compatible Flush Mounted IP Video Door Station
Vandal Resistant Stainless Steel Faceplate with HID® multiCLASS® Reader
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 5.28 Watts
- Camera: ⅓" CMOS 1.23 megapixel
- Min. illumination: 5 lux
- Audio Codec: G.711 (μ-law, A law), G.722
- Video Codec: H.264/AVC, motion JPEG
- Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security: IEEE 802.1X
- Operating Temp: -31° - 140°F (-35° - 60°C)
- Ingress Protection: IP65
- Impact Protection: IK07
- Dimensions: 11-11⁄16" H x 7" W
- Mounting: Flush mounted with included back box, or surface mount with the SBX-IDVFRA Stainless Steel surface mount box
- Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
- ONVIF® Profile S Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- 1.23 megapixel fixed color video camera
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- IP65 rated, weather resistant
- Stainless steel faceplate
- 2 contact outputs
- 6 trigger inputs
