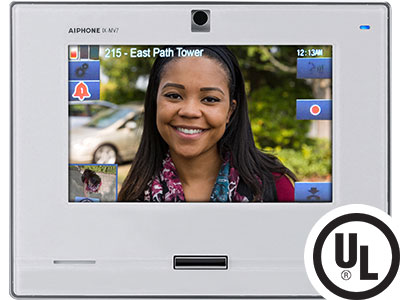

SIP Compatible IP Video Master Station with 7" Touchscreen and Hands-free (White)

SIP Compatible IP Video Master Station
7" Touchscreen and Hands-free (White)

• Power Source: PoE (IEEE 802.3af class 0)
• Power Draw: 4.32 Watts
• Camera: ⅓" CMOS 720p
• Min. illumination: 5Lux
• Audio Codec: G.711 (μ-law, A law), G.722
• Video Codec: H.264/AVC, Motion JPEG
• Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
• Port Security: IEEE 802.1X
• Operating Temp; 32° - 104°F (0° - 40°C)
• Dimensions: 6-3⁄4" H x 8-11⁄16" W x 1-1⁄4" D
• Mounting: Multi-angled desk stand (30°, 45°, 60°), or wall mount with included bracket.

• SIP 2.0 Compliant allowing integration with Cisco Unified Call Manager®.
• ONVIF® Profile S Compliant
• 802.3af PoE, Class 0
• 7″ TFT LCD touchscreen
• Use built-in cameras for two-way master-to-master video conferencing (w/ privacy shutter)
• Hands-free or push-to-talk communication
• 8 customizable speed dial buttons
• Turn your master into a virtual receptionist – ideal for unmanned waiting areas or unstaffed lunch hours
• Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
• Picture-in-Picture (PIP) allows an ONVIF Profile S IP camera and an Aiphone video intercom to be viewed simultaneously
• 2 contact outputs, 4 trigger inputs
• 8Ω 1/2 watt speaker output provides better coverage for announcements
• 600Ω audio input.
