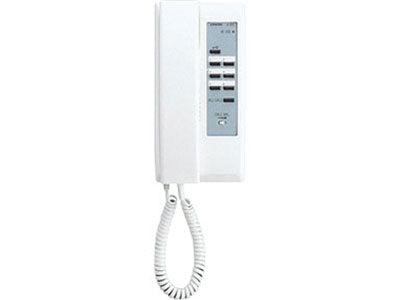

Sub-Master Handset for IE-8MD

• Communication : Handset (full-duplex)
• Door Release : N/O dry contact, 24V AC/ DC, 350mA
• Wire Type : Door Station to Master Station: 2-cond., overall shield
• Master Station to Sub Stations : 4-cond., overall shield
• Distance :
  • Door Station to Master Station: 500'(22AWG) 1,180'(18AWG)
  • Master Station to farthest Sub Master Station: 245'(22AWG)                   580'(18AWG)

SUB-MASTER HANDSET FOR IE-8MD

• Selective Call or All Call between handsets
• Simple 4 conductor wiring between handsets
