VDS Automazioni

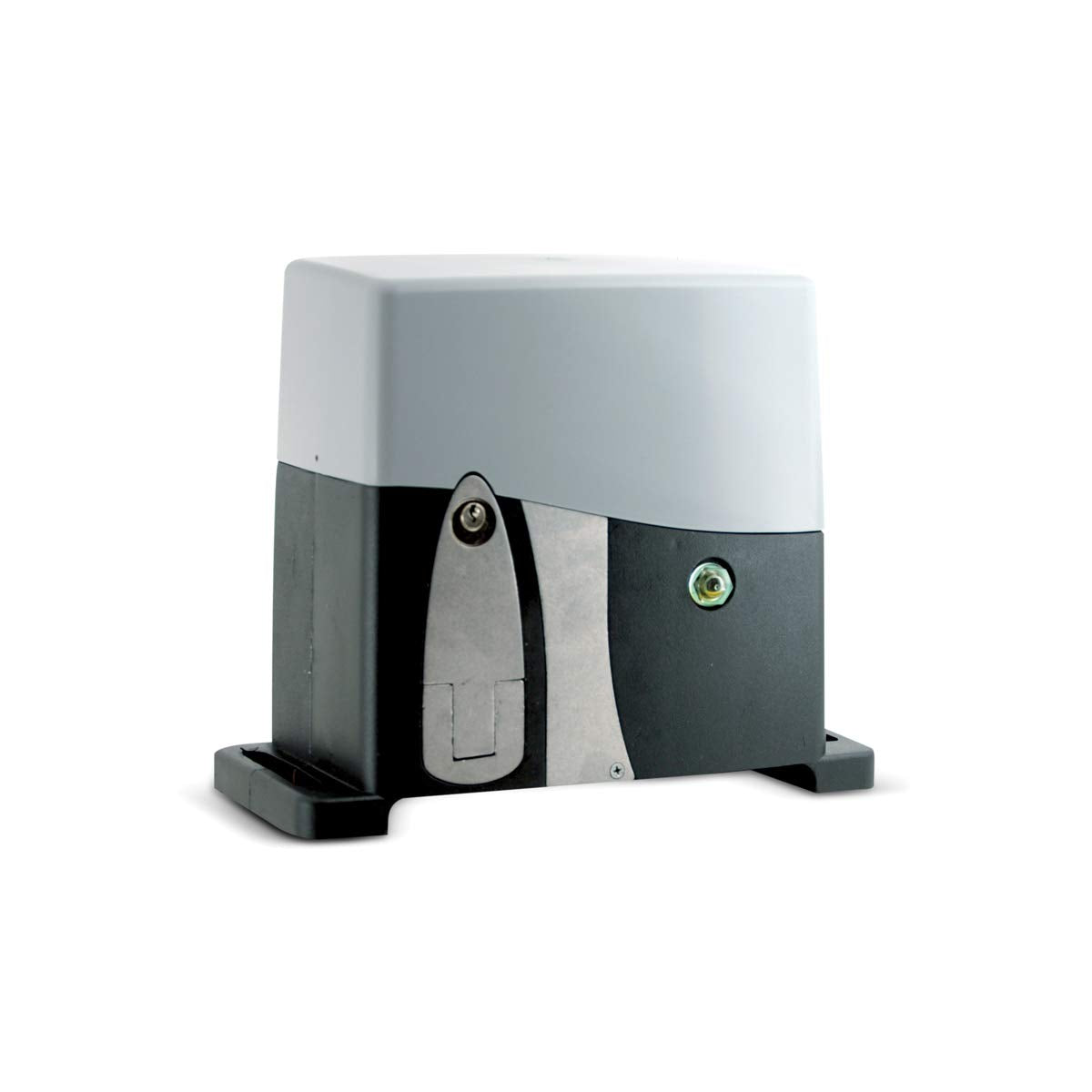

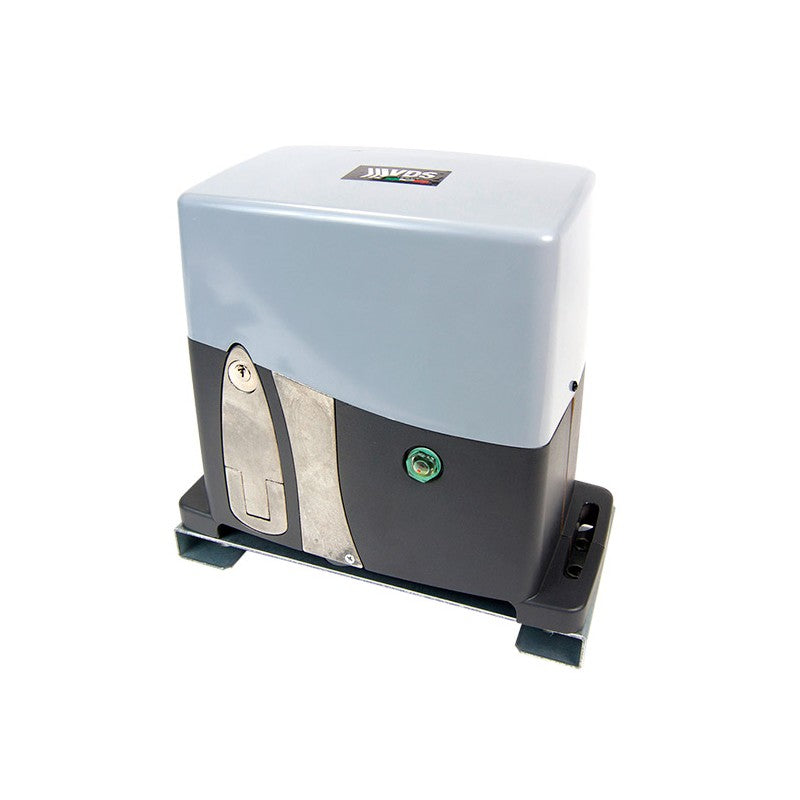

VDS AG Future AC Sliding Gate Motor (1000kgs) Complete Set

VDS AG Future AC Sliding Gate Motor (1000kgs) Complete Set

SKU:AG FUTURE 1000 /CP

Low stock: 1 left

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Shipping calculated at checkout.

VDS AG FUTURE 1000/CP

VDS AG Future AC Sliding Gate Motor (1000kgs) complete set c/w

● 2 pcs Key

● 2 pcs Limit Switch Bracket

● 1 pc Sliding Gate Control Panel (3-P-F5)

● 3pc 2 channel Transmitter (3-RCS7-TX)

● 1pc 2 Channel Receiver (3-RCS7-RX)

● 4 pcs 1 meter Gear Rack (3-GR-1M)

VDS AG FUTURE

VDS AG FUTURE – Sliding Gates Operator 230V–380V

FEATURES

  • Structure in die-cast aluminum, powder painted
  • Steel and cast gears obtained from solid
  • Stator and mechanical parts in oil bath- except 800 kg version, grease lubricated
  • Available with and without control unit
  • Control unit with built in radio receiver and aerial, control unit box with air-stop seal against moisture and insects
  • Pre-wired and easy programming software
  • High-performance electric motor
  • Release device with customized key
  • Electronic torque control
  • Very quiet operation
  • Anti-squashing system and slowing down function (en 12453)
  • The 1800 kg three-phase version comes with a control unit with soft start sot stop function
  • Power supply 230Vac – 380Vac

PERFORMANCE REQUIREMENTS

  • Operating cycle semi-intensivo 230Vac, intensivo 380Vac
  • Frequency of use 50% (230Vac) – 80% (380Vac)
  • Speed 10 mt./min. (230 Vac) – 10 mt./min. (380 Vac)
Catalogue

VDS AG FUTURE

Installer Manual

VDS AG FUTURE
