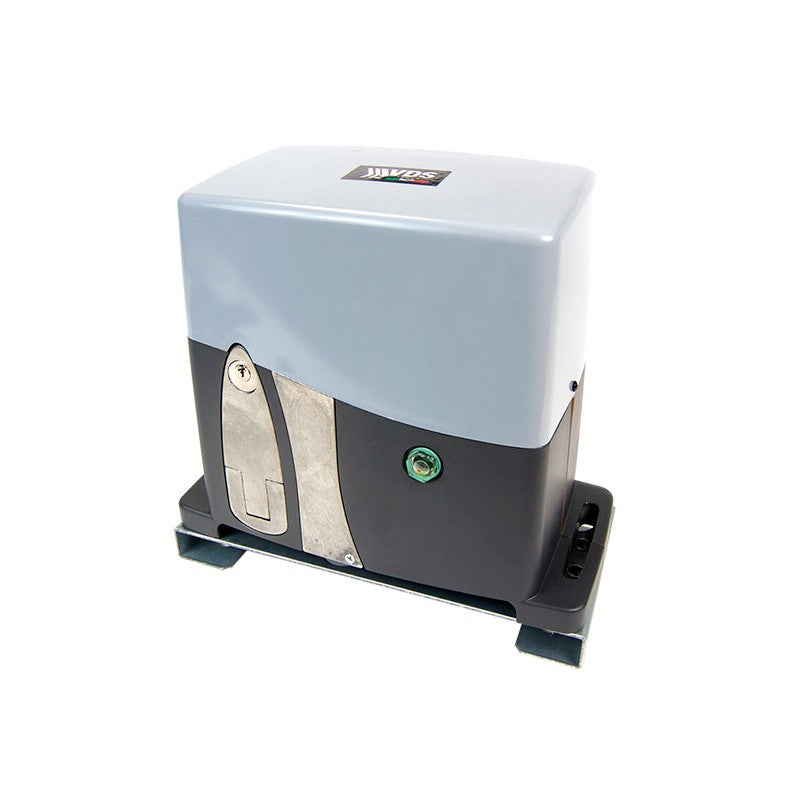

VDS AG Future AC Sliding Gate Motor Only (1000kgs)

VDS AG FUTURE 1000

VDS AG Future AC Sliding Gate Motor Only (1000kgs) w/

2 pcs Key- 2 pcs Limit Switch Bracket

AG FUTURE – Sliding Gates Operator 230V–380V

FEATURES

• Structure in die-cast aluminum, powder painted
• Steel and cast gears obtained from solid
• Stator and mechanical parts in oil bath- except 800 kg version, grease lubricated
• Available with and without control unit
• Control unit with built in radio receiver and aerial, control unit box with air-stop seal against moisture and insects
• Pre-wired and easy programming software
• High-performance electric motor

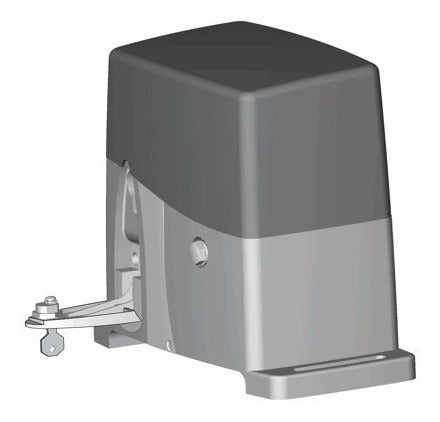

• Release device with customized key
• Electronic torque control
• Very quiet operation
• Anti-squashing system and slowing down function (en 12453)
• The 1800 kg three-phase version comes with a control unit with soft start sot stop function
• Power supply 230Vac – 380Vac

PERFORMANCE REQUIREMENTS

• Operating cycle semi-intensivo 230Vac, intensivo 380Vac
• Frequency of use 50% (230Vac) – 80% (380Vac)
• Speed 10 mt./min. (230 Vac) – 10 mt./min. (380 Vac)
