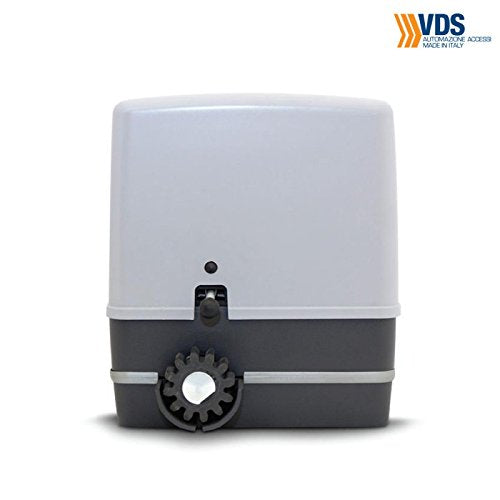

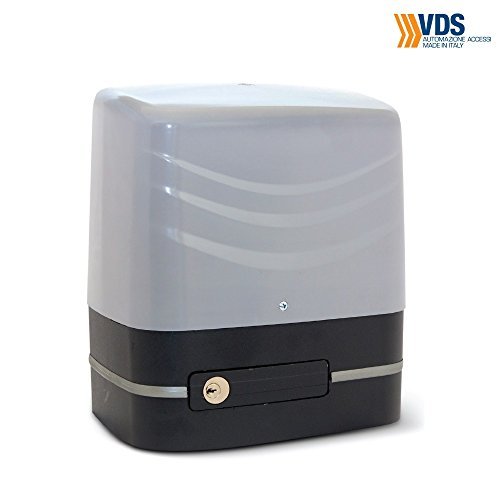

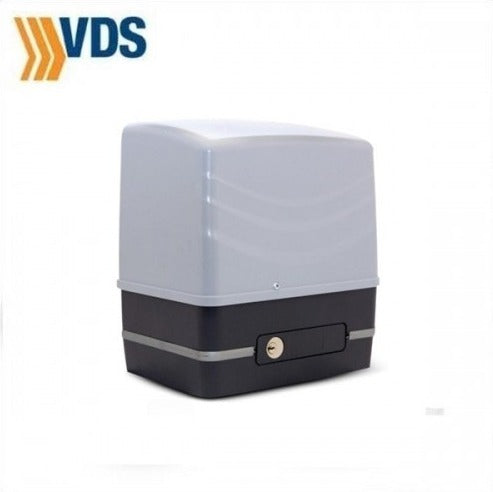

VDS Simply-BT Residential DC Sliding Gate Motor (400kgs) w/built-in Base Bracket Complete Set

VDS SIMPLY-BT/CP

VDS Simply-BT Residential DC Sliding gate motor (400kgs) w/built in base bracket complete set c/w :

● 1 pc DC Sliding Gate Control Panel (3-P-F11)

● 3 pcs 4 Button Transmitter (3-RC12L-TX)

● 1 pc 2 Channel Receiver (3-RC12L-RX)

● 1 pc 12V 7AH Battery (EG12.7.2) ( 1 Year Warranty For Battery )

● 1 pc Transformer 24V,12V,0V,12V,24V (5Amp) (3-TF-01)

● 1 pc PVC Box (3-BOX-PVC)

● 2 pcs Limit Switch Bracket (3-VDS-LSB)

● 4 pcs 1 meter Gear Rack (3-GR-1M)

SIMPLY BT– Sliding Gates Operator DC 24V

FEATURES

• Structure in die-cast aluminum, powder painted
• Steel and cast gears obtained from solid
• Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust
• Very quiet operation
• High-performance electric motor
• Release device with customized key
• Available with and without encoder
• Electronic torque control
• Pre- wired and easy programming software
• Available with and without control unit
• Control unit box with air-stop seal against moisture and insects
• Anti-squashing system and slowing down function (en 12453)
• Optional kit battery backup
• Power supply 24Vdc

PERFORMANCE REQUIREMENTS

• Operating cycle intensivo 24Vdc
• Frequency of use 80% (24Vdc)
• Speed 12 mt./min. (24 Vdc)
