X-Calibur

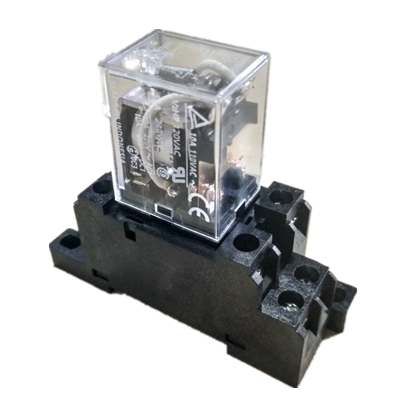

X-Calibur 5-Relay-2Pole Relay, DPDT
X-Calibur 5-Relay-2Pole Relay, DPDT
SKU:5-RELAY-2POLE
Low stock: 1 left
Shipping calculated at checkout.
Couldn't load pickup availability
- Coil Voltage : 12 V dc
- Contact Configuration : DPDT
- Mounting Type : Plug In
- Switching Current : 10A
- Dimensions : 24.4(H) x 28(W) x 41.5(D)mm
Part Number : 5-RELAY-2POLE (Manufacturer Part Number : LY-2)
- Withstand voltage 2000V coil to contact
- Arc barriers to prevent flash-over between adjacent poles
- Relay clips for DIN types available separately
- Contact resistance: 50mΩ
- Isolation coil to contact: 12kV
- Operating temperature range: -25 to +55°C
- Switching Voltage: 110Vac; 24Vdc
- Contact material: AgCdO
