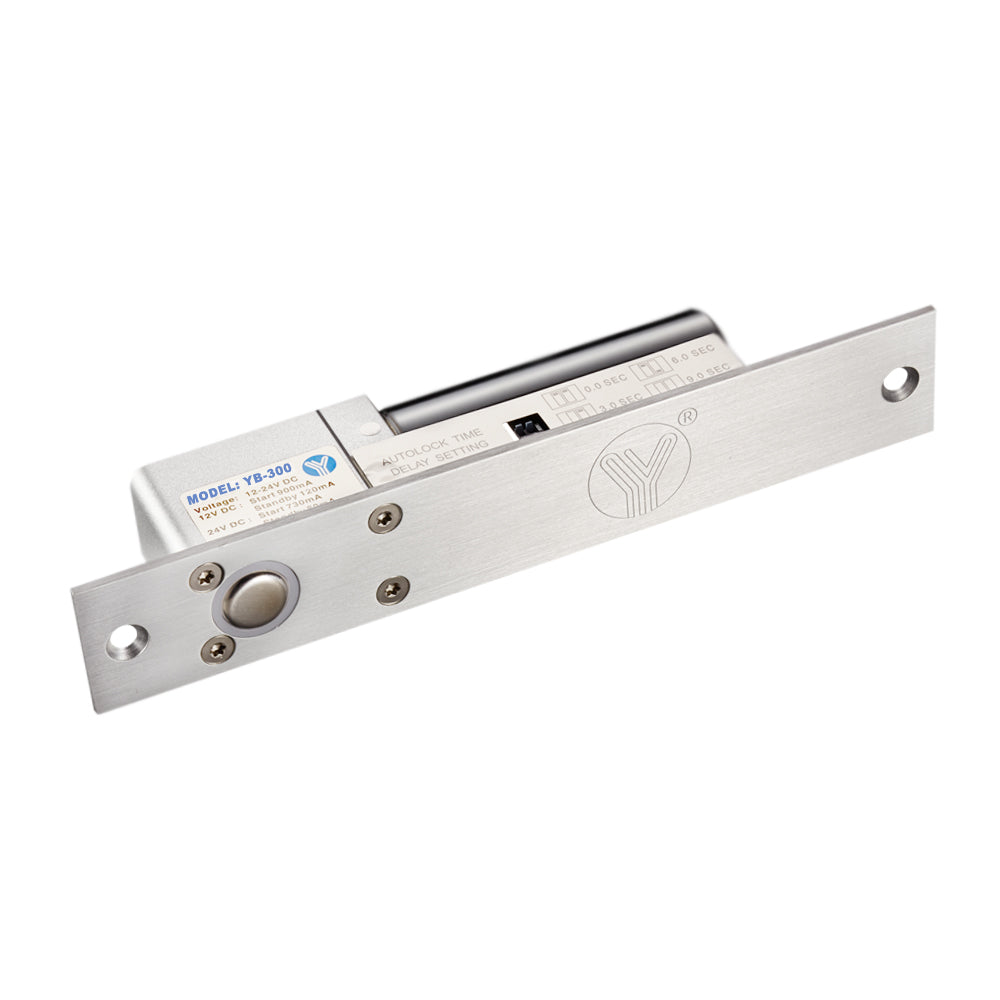

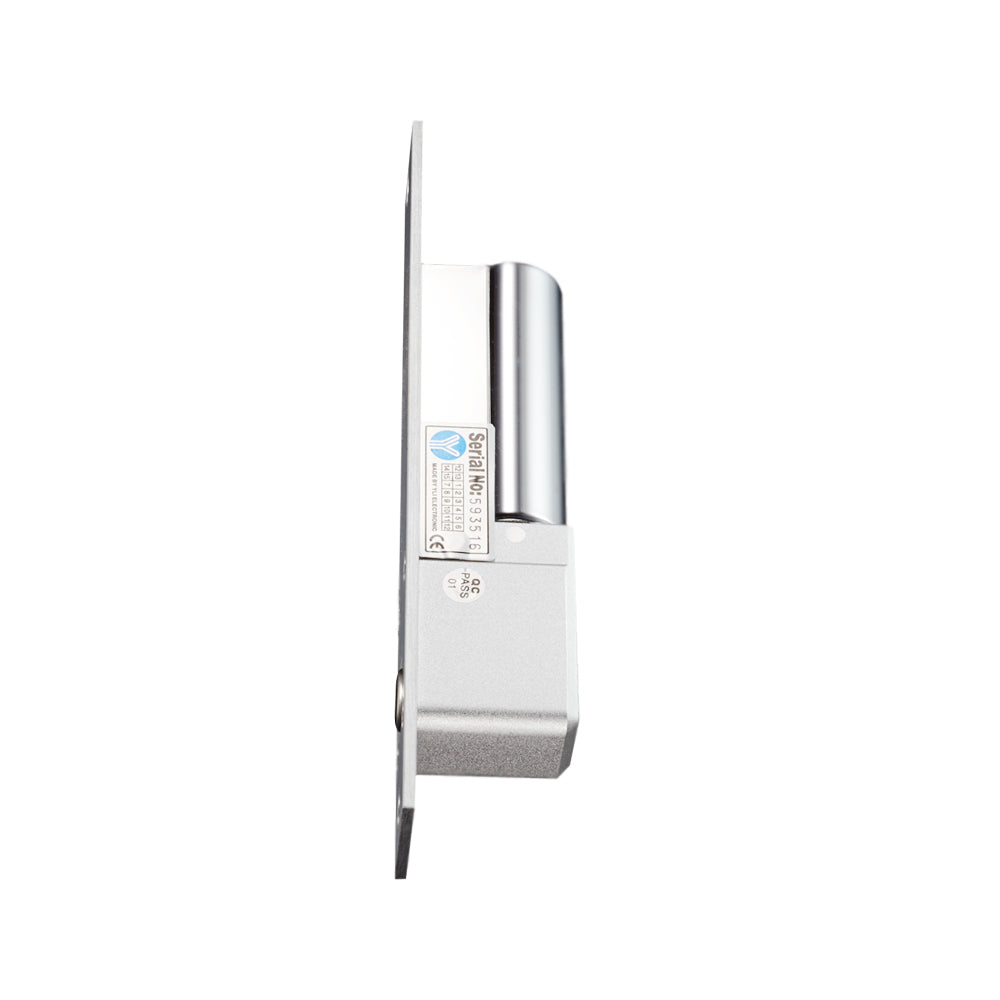

YB-300 Electronic Drop Bolt (Fail Safe)

• Voltage Input : 12VDC
• Current Draw : 900mA (Start Current) / 120mA (Standby Current)
• Operation : Fail Safe
• Holding Force : Up to 800kg
• Autolock Time Delay : 0, 3, 6, 9sec
• Operating Temperature : -10~55° C ( 14~131° F)
• Operating Humidity : 0~90% ( non condensing)
• Weight : 0.79kg
• Dimensions : Face Plate - 205Lx35WX41H(mm)

                                            Strike Plate - 90Lx25Wx2H(mm)

• Low Temperature, Safe & Durable.
• Long Life  with 500000 Operations.
• MOV Provides Reverse Current Protection.
• Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
• Door Status Signal Output Contact (NC.COM).
• Auto-relock if no Action within 5 secs.

YLI ELECTRONIC YB-300 DROP BOLT
